Standing Seam

Standing seam roofing is a simple, quick & economic technique often using Zinc & Copper to cater for demanding aspect of construction where unique aesthetic & geometric requirements can be resolved.

Features/benefits

  • Custom cut up to 6 metres
  • Minimum roof pitch 2°
  • Rib height 25mm
  • Variable pan widths available from 230mm to 530mm
  • Standard panel widths 330mm & 530mm
  • Fixed by a concealed stainless steel slip spaced every 30mm apart.
  • Minimum length 500mm

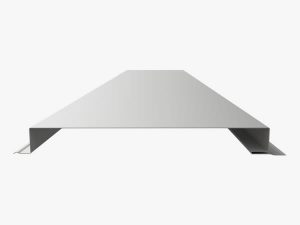

M-Clad

M-clad panelling system is suitable for both commercial and residential applications. With its variable pan width and recess joins offering a clean sleek finish you can be sure this will profile aesthetically pleasing.

Features/benefits

  • Can be laid horizontally or vertically
  • Suitable for walling
  • Custom cut up to 6 metres
  • Variable Recess widths
    • 0mm, 5mm, 10mm & 15mm
  • Standard pan widths
    • 200mm, 250mm & 300mm
  • Minimum length 500mm

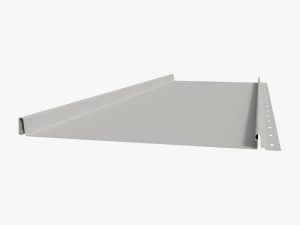

M- Strip

An innovative cladding system offering sleek & stylish design with variable pan widths. M-Strip is installed by nails or screws with the adjoining sheet concealing the fixing & securing it into place.

Features/benefits

  • Can be laid horizontally or vertically
  • Suitable for roofing & walling
  • Varibable pan widths from 185mm – 465mm
  • Standard rib panel widths
  • 285mm & 485mm with 25mm rib
  • 265mm & 465mm with 38mm rib
  • Custom cut up to 8 metres
  • Minimum roof pitch 5°
  • Minimum length 500mm
Maxline Main

MAXLINE 340

When you need a stylish roofing or wall cladding product that is sleek with a concealed fix, just think Maxline. Used by architects on award winning designed houses, office buildings and schools, you know you’ve got a real winner.

Features/Benefits

  • Concealed Fix flat profile
  • Self-spanning up to 1500mm
  • Suitable for roofing & walling
  • Minimum roof pitch 1° roof pitch
  • 325mm wide pan with a 340mm cover
  • 53mm rib height
  • Minimum length 300mm
