Showing all 15 results

Corrugated

Stramit® Corrugated is a hi-tensile cladding and roofing sheet that suits both traditional and modern building designs.
Features/Benefits

  • Economical – low cost roof and wall cladding available in long lengths
  • Easy Fixing – conventional through fixed screws maximise performance and installation
  • 762mm Cover – quick installation and easy handling
  • Hi-tensile Steel – light weight and high strength
  • Cut to length up to 17metres.
  • Available in .42bmt or .48bmt thickness.
  • 5° Minimum Pitch – to suit most traditional applications
  • Anti-capillary Side Laps – 1 1/2 rib overlaps for weather protection
  • Fully Tested – a full range of load performance tables to suit most applications
  • Available in Colorbond, Zincalume, Galvanise, Colorbond Matt & Ultra

Monoclad/Trim 5

The visual appeal, strength, wide cover, light weight and weather resistance of Stramit Monoclad® cladding make it perfect for all commercial roofing and walling applications. Its excellent strength and ease of assembly allow for long, economical spans. The large water-carrying capacity and weather-tightness permit very low roof pitches, leading to economies in the building structure.

Features/Benefits

  • Economical – unique blend of characteristics provides a low installed cost
  • Simple Installation – through fixing and easy notching of flashings
  • 762mm Cover – quick installation and easy handling
  • Hi-tensile Steel – lightweight and high strength
  • Deep Ribs – provide excellent spanning capability with good water carrying capacity
  • Domed Crest – provides greater foot traffic performance
  • Anti-capillary Side Laps – gives improved weather structure
  • 2° Minimum Pitch – reduces support structure
  • Fully Tested – a full range of load performance tables to suit almost any application
  • Available in Colorbond, Zincalume, Galvanise & Ultra.
  • Cut to length up to 30metres.
  • Available in .42bmt or .48bmt thickness.

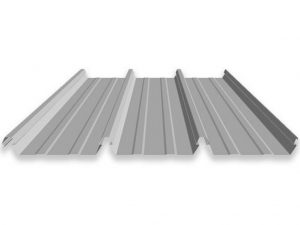

Speed Deck Ultra

The visual appeal, strength, wide cover, light weight and weather resistance of Stramit Speed Deck Ultra® decking make it perfect for all commercial roofing applications. Its excellent strength and ease of assembly allow for long, economical spans. The large water-carrying capacity and weather-tightness permit very low roof pitches, leading to economies in the building structure.

Stramit Speed Deck Ultra®decking may also be used for domestic applications.

Features/Benefits

  • Wide Cover – fewer sheets and quicker installation
  • Deep Ribs – stronger with better water carrying capacity; roof slopes as low as 1°
  • Full Length Clips – to locate ribs and compress insulation
  • Four Fixing Points Per Clip – with centralised fastening for unsurpassed strength.
  • Hexagon Head Screws – bigger, stronger and easier to install, with less wastage
  • Outstanding Wind Load Resistance – improved security with lower purlin costs
  • Spring Curving – data for arched and curved roofs
  • Automatic Bird Proofing – built in accessory with no need for extra components
  • Available in Colorbond, Zincalume, ColorbondMATT & Ultra.
  • Cut to length up to 30metres.
  • Available in .42bmt or .48bmt thickness.

Longspan

The striking linearity, strength, wide cover, light weight and weather resistance of Stramit Longspan  cladding make it perfect for many commercial roofing and walling applications. Its excellent strength and ease of assembly allow for long, economical spans. The good water-carrying capacity and weather-tightness permit very low roof pitches, leading to economies in the building structure.Stramit Longspan® cladding is also used for domestic applications, where a strong but uniform appearance is desired.

Features/Benefits

  • 700mm Cover – quick installation and easy handling
  • Easy Fixing – conventional through fixed screws maximise performance and installation
  • Hi-Tensile Steel – light weight and high strength with improved damage resistance
  • Design Flexibility – long lengths and anti-capillary side laps enable Stramit® Longspan cladding to be used effectively on applications from vertical wall cladding and fascias to roofs with pitch as low as 1.5°
  • Fully Tested – a full range of load performance tables to suit most applications
  • Extended Spans – strength and rigidity of the profile allows economical construction
  • Available in Colorbond, Zincalume, Galvanise & Ultra.
  • Cut to length up to 30metres.
  • Available in .42bmt or .48bmt thickness

Custom Orb Accent 35/ True Oak Super 5

A strikingly deep roof and wall cladding with corrugations 120% deeper and 50% wider than traditional corrugated profiles perfectly suited to in modern industrial, commercial, residential and recreational buildings

Features/Benefits

  • Offers improved resistance to damage
  • Long spanning capacity
  • Nominal cover width: 724mm
  • Minimum roof slope: 2°
  • Available in Limited Colorbond Colours, Zincalume & Colorbond MATT Monument (only)
  • Cut to length up to 23 metres
  • Available in .48bmt thickness.

Spandek

A modern, simple square-corrugated roofing and walling cladding that is strong, impact resistant and economical – ideal for both commercial and residential applications.

Features/Benefits

  • Highly serviceable roofing and walling cladding
  • Bold ribs offer high strength and high water carrying capacity
  • Nominal cover width: 700mm
  • Minimum roof slope: 2°*
  • Available in Colorbond, Ultra, MATT, Metallic, Double sided Colorbond& Zincalume
  • Cut to length up to 27.9 metres
  • Available in .42bmt or .48bmt

 *For roof slopes down to 2° a number of provisions and details will need to be adhered to. Please call your nearest Lysaght branch for advice.

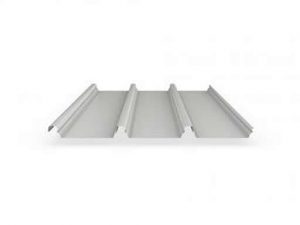

Klip Lok 700 HI Stregth

An advancement of the original concealed fix roof cladding with bold ribs making a strong visual statement rising from flat pans. It is a superior product which has earned FM Global approval.

Features/Benefits

  • Concealed fixed offering supreme watertightness
  • Can be used with LOK-KLIP® end and expansion joint system
  • Nominal cover width: 700mm
  • Minimum roof slope: 1° (subject to design provisions being met)
  • Available in standard Colorbond colour range, Ultra, Metallic & Zincalume
  • Cut to length up to 35 metres
  • Available in .42bmt or .48bmt

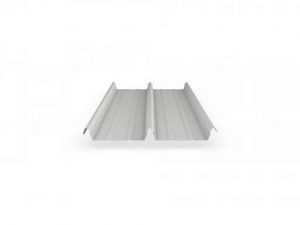

Klip Lok 406

Strong, versatile long-length roofing or walling. The concealed fastening method enables its use on many applications from low pitched roofs to vertical or horizontal ribbed walling.

Features/Benefits

  • Fixing clips secure sheets without puncturing
  • No exposed fasteners for clean, smooth lines
  • Nominal cover width: 406mm
  • Minimum roof slope: 1°
  • Available in .48 only
  • Cut to length up to 20 metres
  • Available in limited Colorbond Colour range & Zincalume

Curved Corrugated

Stramit® Bullnosing and curving extends the versatility of Stramit® Corrugated roofing. It is aesthetically pleasing, easily fixed and compatible with standard Stramit® Corrugated.

Features/Benefits

  • Design flexibility – expands the versatility of traditional corrugated roofing by increasing flexibility of design
  • Variety of shapes – can be formed into a wide variety of curved shapes and radii down to a nominal 500mm minimum
  • Easy fixing – conventional through-fixed screws maximise performance and ease of installation
  • 762mm cover – quick installation and easy handling
  • G300 curving quality base steel – also available as flat sheets to ensure matching profile on end laps
  • Fully tested – full range of load performance tables to suit most applications.
  • Available in .60bmt
  • Cut to length up to 17m
  • Available in Galvanised, Zincalume&Colorbond.

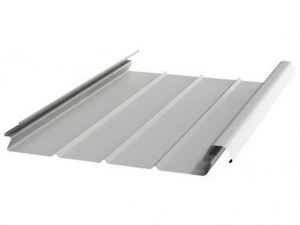

Sunset Patio Panel

The Stramit Sunset® Patio Panel is a purpose-designed roofing material for home improvement projects such as patios, verandas, boat sheds and carports. Wide pans and attractive ribs, enhance the appearance of the roof, while the interlocking rib design simplifies installation.

Features/Benefits

  • Flat panellised design – Enhanced aesthetic appeal.
  • High tensile steel – Light weight and high strength.
  • Fully tested – Complete load performance tables.
  • Interlocking ribs – Enhanced security and appearance.
  • 1° minimum pitch – Low roof pitch with excellent drainage capacity.
  • 290mm cover – Quick installation and easy handling.
  • Interlocking panels – Strength and weather-resistance.
  • Translucent panels – Natural illumination.
  • Cut to length up to 9 metres
  • Available in limited range of Colorbond colours.

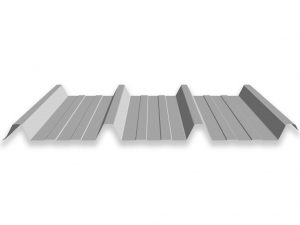

Capacity Plus 660

The drainage capacity, strength, wide cover, light weight and weather resistance of Stramit CapacityPLUS™660 cladding make it perfect for large commercial roofing and walling applications. Its excellent strength and ease of assembly allow for long, economical spans. The large water-carrying capacity and weather-tightness permit very low roof pitches, leading to economies in the building structure.
Features/Benefits

  • High 50mm ribs – excellent water-carrying capacity at low roof pitch and superior profile rigidity.
  • Simple rib shape – enables reliable screw fixing, and easy to trim and notch flashings.
  • Wide 660mm cover – enabling fast handling and laying, and cost economy.
  • Screw fixed – allows fast and flexible high-wind installation techniques such as ‘tack and screw-off’.
  • Range of materials – choice of materials and finishes for enhanced durability options.
  • Low 1o pitch – building economies due to low wall heights and structure reduction.
  • Fully tested – in-house and independent testing for reliable design data and peace-of-mind.
  • Nesting profile – flat packs for economical transport and site crane handling.
  • Available in Colorbond&Zincaulme

Trimdek

Versatile roof and wall cladding featuring bold, trapezoidal ribs and subtle fluting in the pans. Ideal for commercial, industrial and residential buildings.

Features/Benefits

  • Long spanning cladding permitting wide support spacing
  • Can be used with TRIM-KLIP™ end and expansion joint system
  • Nominal cover width: 762mm
  • Minimum roof slope: 2°
  • Available in .42bmt & .48bmt
  • Cut to length up to 35 metres
  • Available in Colorbond, Zincalume, Ultra, MATT, Double sided(limited colours)

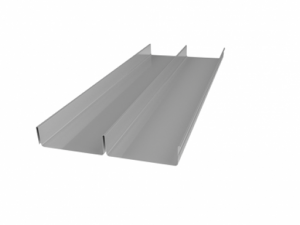

Longline 305

LYSAGHT LONGLINE 305® is a concealed-fixed roof cladding with bold ribs and wide pans. The standing seam ribs make a bold architectural statement, while maximising water tightness. It is available in three styles:
[list_bullet]

  • plain (flat pans)
  • fluted (small creases in the centre of the pan)
  • tapered (pan-width reduced by up to 50% of normal width at one end) for a sweeping fan effect, allowing curved and rounded roof shapes to be clad with ribs radiating from a central point.

[/list_bullet]
It is a simple, low cost fixing that is fast, economical and effective. May be used on roof pitches as low as 1 degree (1 in 50).

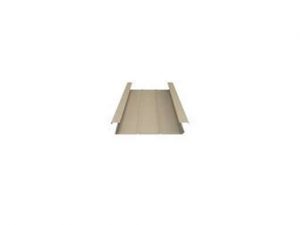

Flatdek

A modern cladding well suited to many types of home improvement projects such as room additions, carports and patios. The underside features clean uninterrupted lines, with an attractive gloss finish.

Features/ Benefits

  • Ideal for open sided structures where a high degree of watertightness is not required
  • Perfect for creating a flat, ceiling like finish
  • Nominal cover width: 250mm
  • Minimum roof slope: 2°
  • Available in limited double sided Colorbond colour range
  • Cut to length up to 9 metres

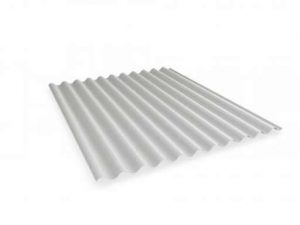

Custom Orb Accent 21/ True Oak 21

A mid-depth corrugated roof and wall cladding offering a bold roof line, improved resistance to damage and greater spanning capacity.

Features/Benefits

  • Deep corrugated roof cladding ideal for areas with high rainfall
  • Ideal for low pitched roofs
  • Nominal cover width: 762mm
  • Minimum roof slope: 3°
  • Available in Limited Colorbond Colours, Zincalume& Colorbond MATT Monument (only)
  • Cut to length up to 23 metres
  • Available in .40bmt or .48bmt thickness.
